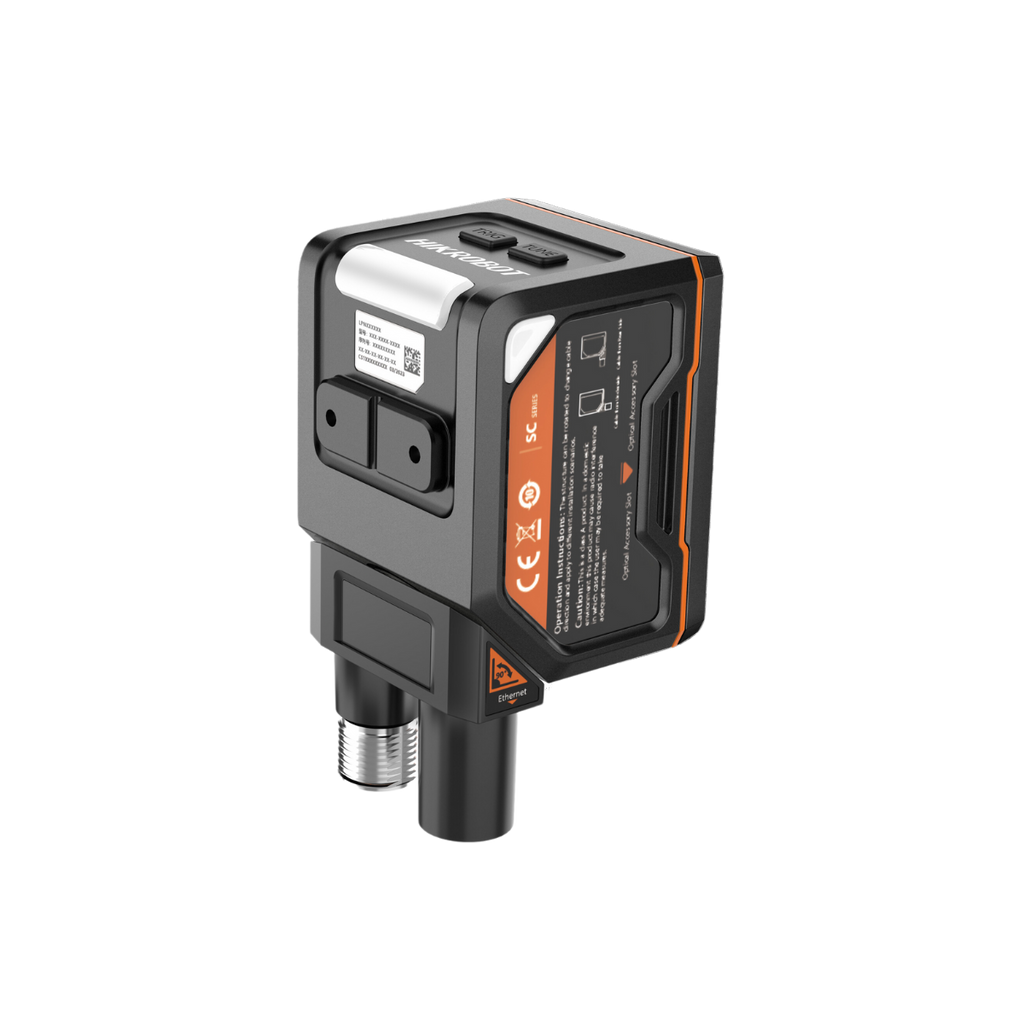

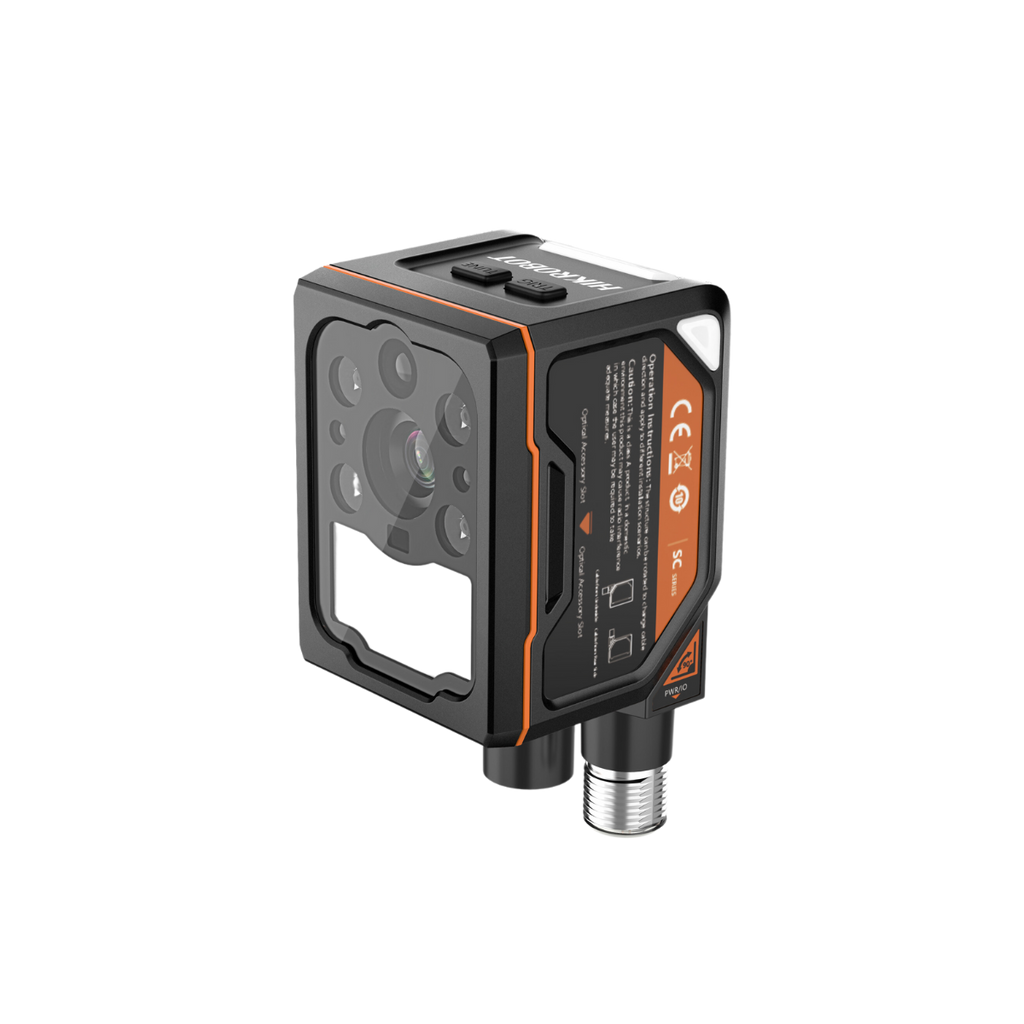

SC3013X Series Smart Camera
HIKROBOT
SC3013X Series Smart Camera
SKU:
Volume pricing available
Key Features
- SC3000X Series Industrial Smart Camera
- IP67-Rated (under proper installation of the waterproof lens cap)
- Fast Ethernet (100 Mbit/s)
- 1/1.45" inch CMOS Sensor
- M12-Mount Lens (Supports mechanical autofocus)
- 1216 × 1024 (1.3MP), up to 60 fps
- Pixel Size: H: 6.9µm, V: 6.9µm
- Global Shutter
- Trigger and I/O inputs
- Straight angle: 80.1 × 43 × 44.3 mm (3.2" × 1.7" × 1.7")
- Right angle: 58.5 × 43 × 65.4mm (2.3" × 1.7" × 2.6")
What are the SC3000X Smart Cameras?
The SC3000X incorporates over 30 detection algorithms, including presence/absence detection, positive/negative detection, position detection, size detection, DL character recognition/decoding, and more. These algorithms cater to a wide range of application scenarios, particularly quality inspection in general equipment manufacturing. With its enhanced functionality and improved cost performance, the SC3000X is extensively utilised in single-station error prevention detection across industries like 3C electronics, food and drugs, manufacturing, new energy, and semiconductors. It offers a valuable and comprehensive visual detection solution.
It comes equipped with two buttons, an integrated trigger and an autofocus button. The autofocus button is essentially a one-key adjustment, enabling you to reduce the time spent configuring the equipment. Furthermore, it's installed with multiple illumination options, including polarised, diffused and full-transparent.
Documentation
FAQ's & Further Information
How do I choose the right camera for my application?
Choosing the right camera involves evaluating several key factors, including the size and speed of the object being inspected, the required resolution, the field of view, and environmental conditions such as lighting and vibration. Understanding these parameters ensures that the selected camera can reliably capture the necessary image data for accurate inspection or measurement.
Do I need a rolling shutter or a global shutter camera?
The choice between a rolling shutter and a global shutter depends on your application, particularly the speed of motion you need to capture and the level of image accuracy required.
A rolling shutter sensor captures an image line-by-line. This makes it a cost-effective option and perfectly suitable for many general-purpose vision tasks where objects are relatively static or moving slowly. However, when imaging fast-moving objects or scenes with rapid changes, rolling shutter can introduce distortion (such as skewing or “jello” effects).
A global shutter sensor, on the other hand, captures the entire image at the same instant. This eliminates motion distortion and ensures accurate image capture, making it ideal for high-speed applications such as industrial automation, robotics, and inspection systems.
Do you need a C-Mount lens to pair with your camera?
Please see our catalogue of C-mount lenses here. If you need any assistance with selecting the correct lens, please use our lens selector tool or get in touch with a member of our team.
