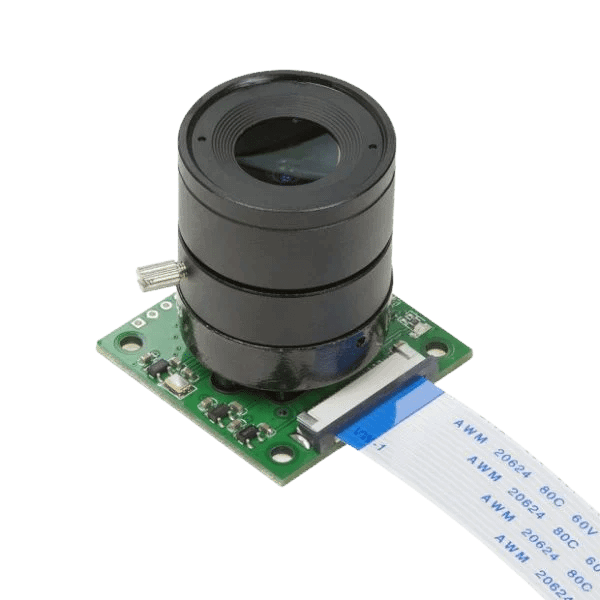

8MP Camera Module with CS lens for Raspberry Pi
Arducam
8MP Camera Module with CS lens for Raspberry Pi
SKU:
Volume pricing available
Key Features
- Image Sensor: IMX219
- Still Resolution: 8 Megapixels
- Video Modes: 1080p47, 1640 × 1232p41 and 640 × 480p206
- Sensor Resolution: 3280 × 2464 pixels
- Sensor image area: 3.68 x 2.76 mm (4.6 mm diagonal)
- Pixel Size: 1.12 µm x 1.12 µm
- Optical Size: 1/4"
- IR Sensitivity: Integral IR-cut Filter, visible light only
- Supported Platform: Raspberry Pi 5/4B/3B+/3/2/CM3/CM4/CM5/Zero W/Zero 2 W
Specifications
FAQ's & Further Information
How do I choose the right camera for my application?
Choosing the right camera involves evaluating several key factors, including the size and speed of the object being inspected, the required resolution, the field of view, and environmental conditions such as lighting and vibration. Understanding these parameters ensures that the selected camera can reliably capture the necessary image data for accurate inspection or measurement.
Do I need a rolling shutter or a global shutter camera?
The choice between a rolling shutter and a global shutter depends on your application, particularly the speed of motion you need to capture and the level of image accuracy required.
A rolling shutter sensor captures an image line-by-line. This makes it a cost-effective option and perfectly suitable for many general-purpose vision tasks where objects are relatively static or moving slowly. However, when imaging fast-moving objects or scenes with rapid changes, rolling shutter can introduce distortion (such as skewing or “jello” effects).
A global shutter sensor, on the other hand, captures the entire image at the same instant. This eliminates motion distortion and ensures accurate image capture, making it ideal for high-speed applications such as industrial automation, robotics, and inspection systems.
Do you need a C-Mount lens to pair with your camera?
Please see our catalogue of C-mount lenses here. If you need any assistance with selecting the correct lens, please use our lens selector tool or get in touch with a member of our team.
