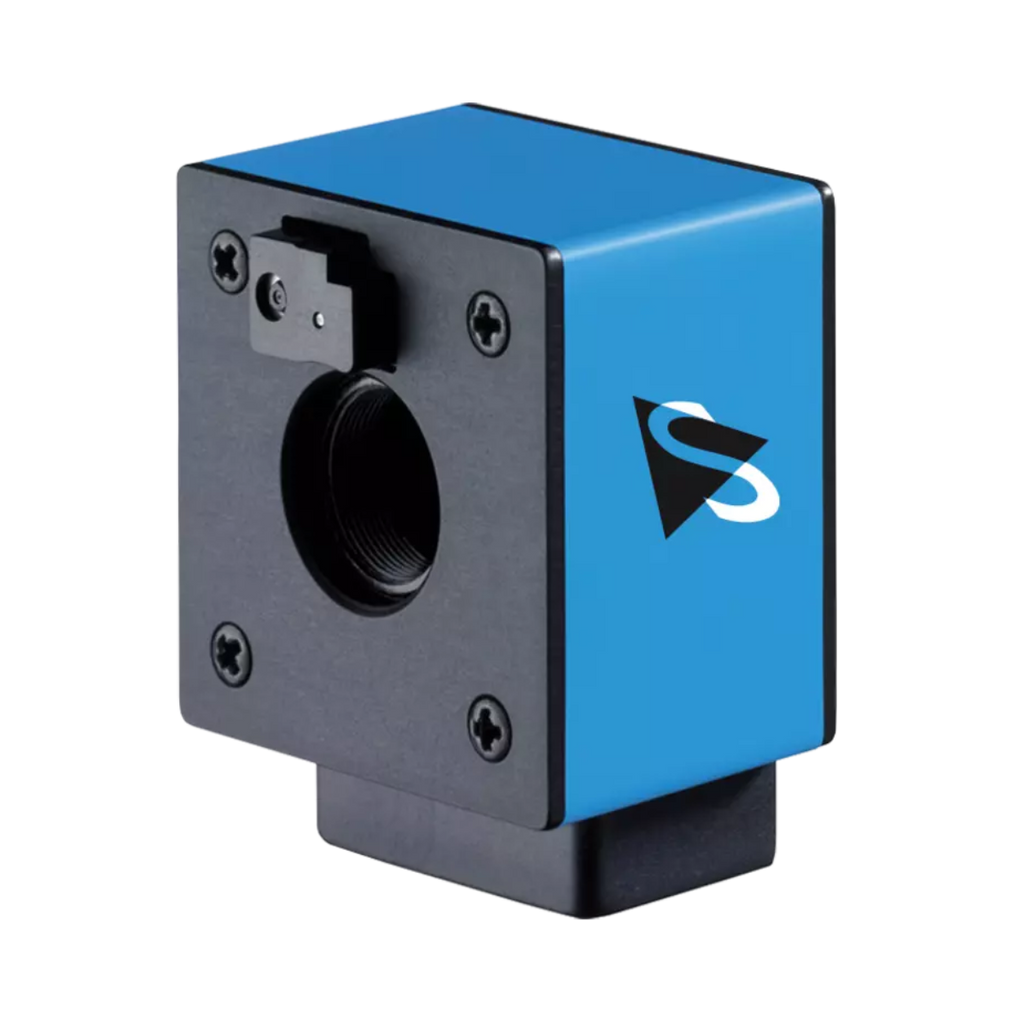

6.3MP 1/1.8" IMX187 USB3.0 Autofocus Camera
The Imaging Source
6.3MP 1/1.8" IMX187 USB3.0 Autofocus Camera
SKU:
Volume pricing available
Key Features
- AFU Series Autofocus Camera
- USB 3.0 Interface
- 1/1.8 inch Sony STARVIS CMOS IMX178LLJ Sensor
- 3,072×2,048 (6.3 MP), up to 22 fps
- Pixel Size: H: 2.4 µm, V: 2.4 µm
- Rolling Shutter
- Only 36×36×30 mm
Do you need an M12 lens to pair with your camera? See our catalogue of M12 lenses.
What are the benefits of using a USB interface camera?
USB cameras offer integration with minimal effort and, in some cases, can offer UVC-compliance, which enables plug-and-play. The bandwidth of USB can achieve 5Gbps (depending on whether you are using USB 2.0 or USB 3.0) and can reach a range of up to 7 metres with passive cables. However, you can use an active optic cable to facilitate a longer cable distance of up to 100m, which may require an external power source (Active optic cables, in most cases, are at a higher price point and may not provide power to the end device).
What are the AFU USB3.0 series cameras?
The Imaging Source's AFU USB 3.0 series is a range of autofocus cameras, ideal for machine vision projects where maintaining consistent working distances is a challenge. These cameras utilise software-driven one-push autofocus, enabling the capture of sharp and precise images, even in situations where working distances vary. Their compact dimensions make them suitable for easy integration into both new and existing applications.
Specifications
FAQ's & Further Information
How do I choose the right camera for my application?
Choosing the right camera involves evaluating several key factors, including the size and speed of the object being inspected, the required resolution, the field of view, and environmental conditions such as lighting and vibration. Understanding these parameters ensures that the selected camera can reliably capture the necessary image data for accurate inspection or measurement.
Do I need a rolling shutter or a global shutter camera?
The choice between a rolling shutter and a global shutter depends on your application, particularly the speed of motion you need to capture and the level of image accuracy required.
A rolling shutter sensor captures an image line-by-line. This makes it a cost-effective option and perfectly suitable for many general-purpose vision tasks where objects are relatively static or moving slowly. However, when imaging fast-moving objects or scenes with rapid changes, rolling shutter can introduce distortion (such as skewing or “jello” effects).
A global shutter sensor, on the other hand, captures the entire image at the same instant. This eliminates motion distortion and ensures accurate image capture, making it ideal for high-speed applications such as industrial automation, robotics, and inspection systems.
Do you need a C-Mount lens to pair with your camera?
Please see our catalogue of C-mount lenses here. If you need any assistance with selecting the correct lens, please use our lens selector tool or get in touch with a member of our team.
