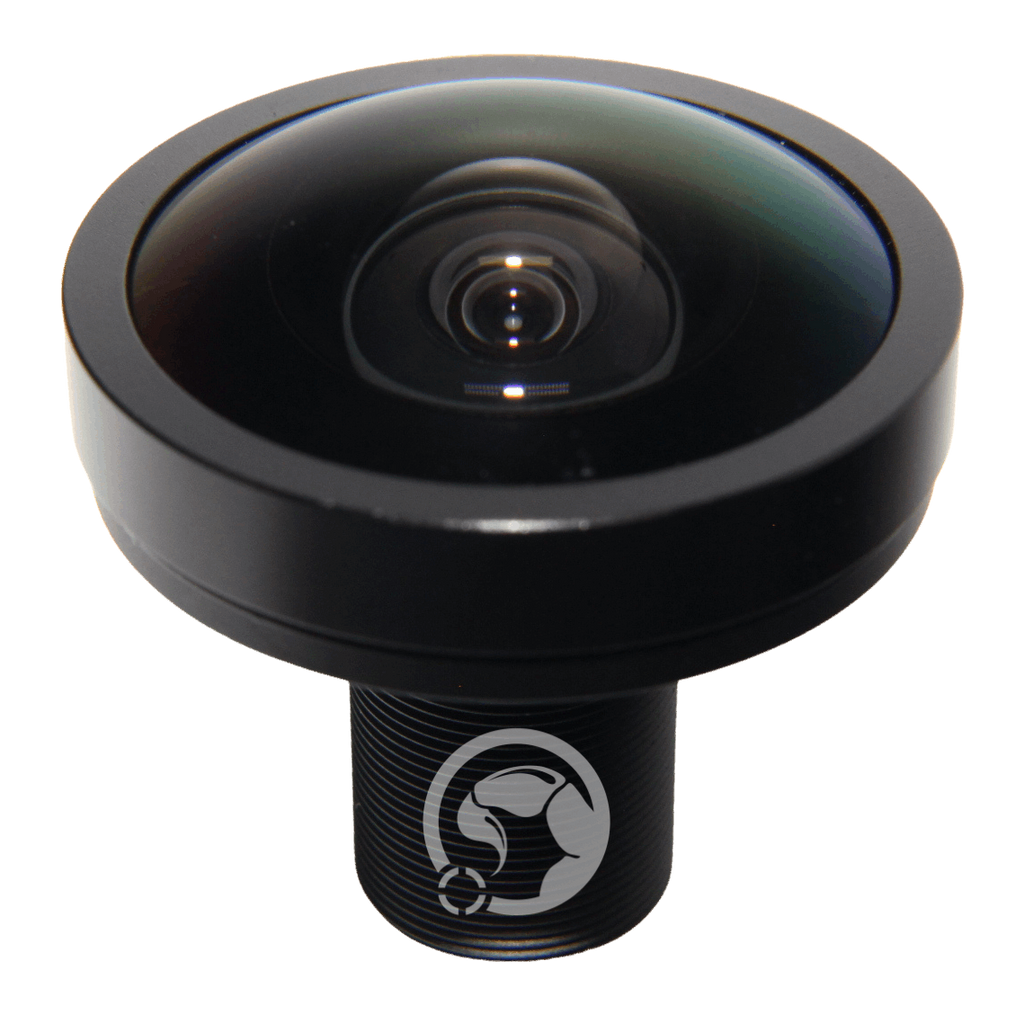

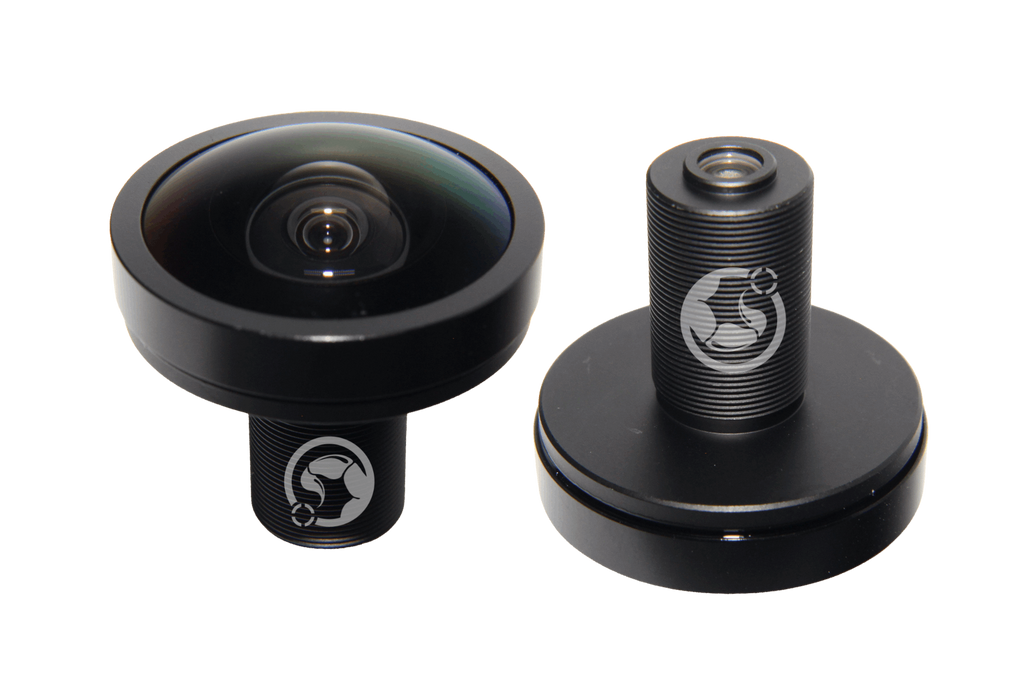

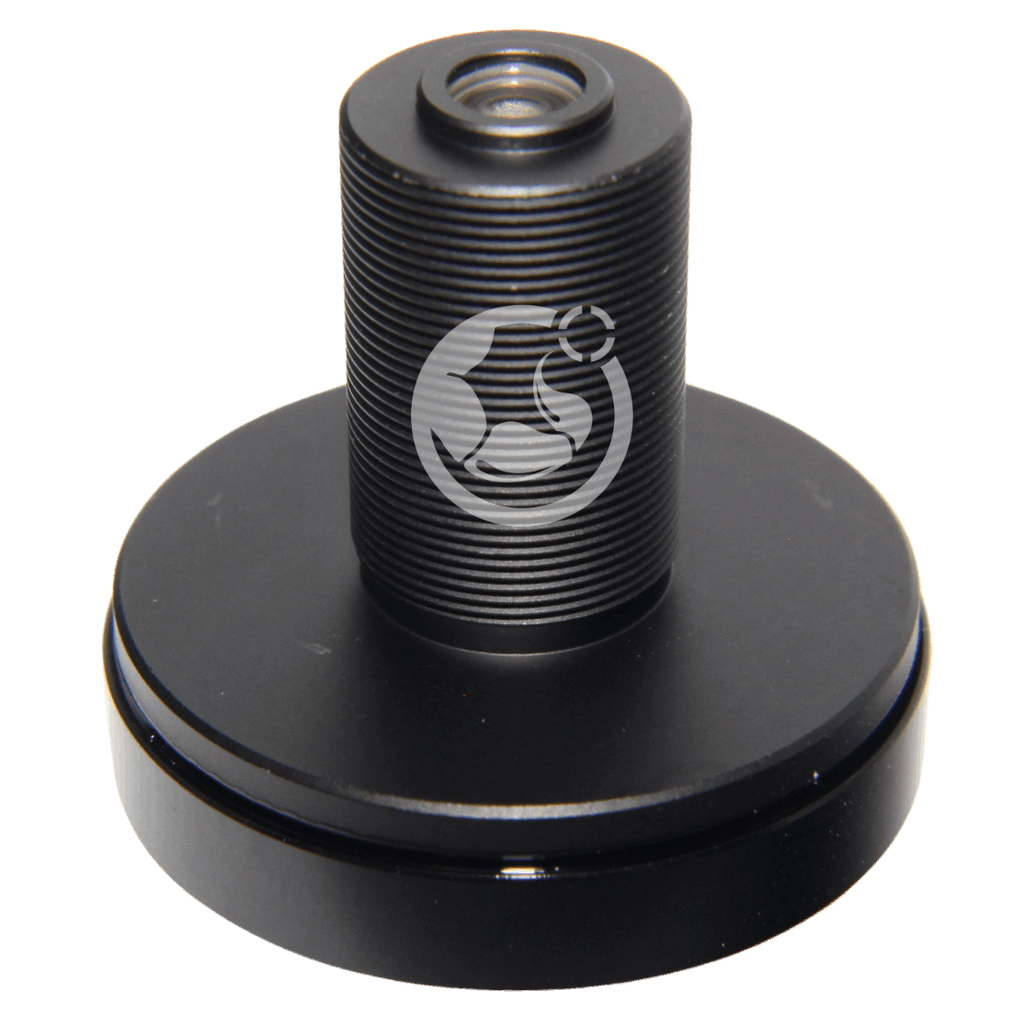

M12 Lens 1.08mm F2.0
Scorpion Vision
M12 Lens 1.08mm F2.0
SKU:
Volume pricing available
Key Features
- Focal Length: 1.08mm
- F Number: F2.0
- Iris: Non-adjustable
- Mount: M12
- Format: 1/3"
- Filter Size: n/a
- Megapixel: 5MP
- Horizontal Field of View: 185 Degrees
- Distortion: <-93%
- Back Focus: 4.4mm
- Wavelength: 400nm - 700nm
Sample Images
Sensor: 1/3" Aptina MT9V024
In the image below the sugar cube was 42mm from the lens and shows a horizontal field of view of 960mm.
The sugar cube measures 16mm x 14mm.
It shows the coin at the closest possible distance of approx. 2mm.
In this next image the coin was a distance of 37mm from the lens.
In the next images the sensor used was a 1/4" Sony ICX618. Despite this not being a macro lens due to its very short focal length it was able to focus right next to the lens. The first image is focused at a distance of 0mm from the lens and the second at 13mm.
Specifications
FAQ's & Further Information
How do I choose the right lens for my application?
Choosing the right lens starts with defining the required field of view (FOV) and working distance, which determine the appropriate focal length. The lens must also be compatible with the camera’s sensor size and provide sufficient optical resolution to match the pixel size and required level of detail.
Application requirements such as minimum feature size, depth of field, and measurement accuracy should be considered, as these influence magnification, aperture, and overall lens performance. For high-precision applications, factors such as distortion and the potential need for telecentric optics must also be evaluated.
In practice, lens selection should be based on the complete imaging system, ensuring the optics, camera, and lighting are all matched to the application requirements.
Please take a look at our lens selector tool.
What are the differences between C-mount and M12 lenses in industrial applications?
C-mount lenses are standardised, mechanically robust, and designed to support larger sensors with higher optical performance, making them suitable for industrial inspection and line scan systems. M12 lenses are compact and cost-effective but are generally limited to smaller sensors and lower precision applications due to reduced optical performance and consistency.
