3D Machine Vision for Automation
Solutions
We provide OEM products and services ranging from the simplest 2D camera to the most advanced solutions embedded in a SmartCamera or combined with the Scorpion 3D Stinger Camera.
OEM Solutions

We have long experience within research and industry focusing on image processing and vision. Our speciality is to design and implement innovative vision solutions in industries where low cost and high performance is very important.

Tordivel Blog
YouTube - Tordivel

We provide vision solutions to leading OEMs in a wide range of industry sectors including: Aquaculture, Food and Beverage, Automotive, Aluminium, Logistics.

3D Robot Vision

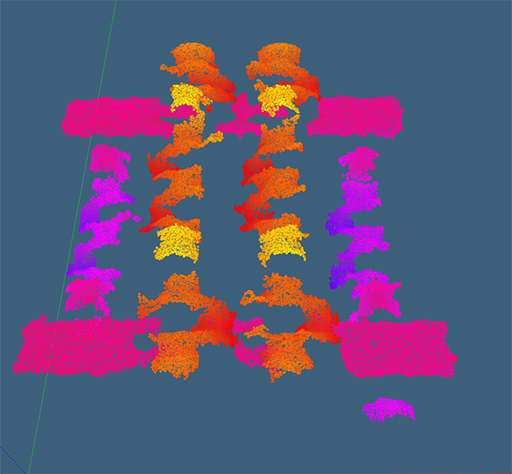

Scorpion 3D Stinger™ for Robot Vision is designed to solve manufacturers’ classic challenge: Picking parts from a conveyor belt, a pallet or a crate.

Scorpion 3D Stinger datasheets
Tordivel Blog
Scorpion Robot Vision

A standard system consists of a Scorpion 3D Stinger™ Camera mounted on a robot or over the crate, part or conveyor. The camera is connected to an industrial PC running the Scorpion Vision Software. The software communicates with robots from all major vendors over rs-232 or tcp/ip.

Scorpion 3D Stinger™ captures images, identifies and locates the product and sends the id and 3D location to a picking robot.

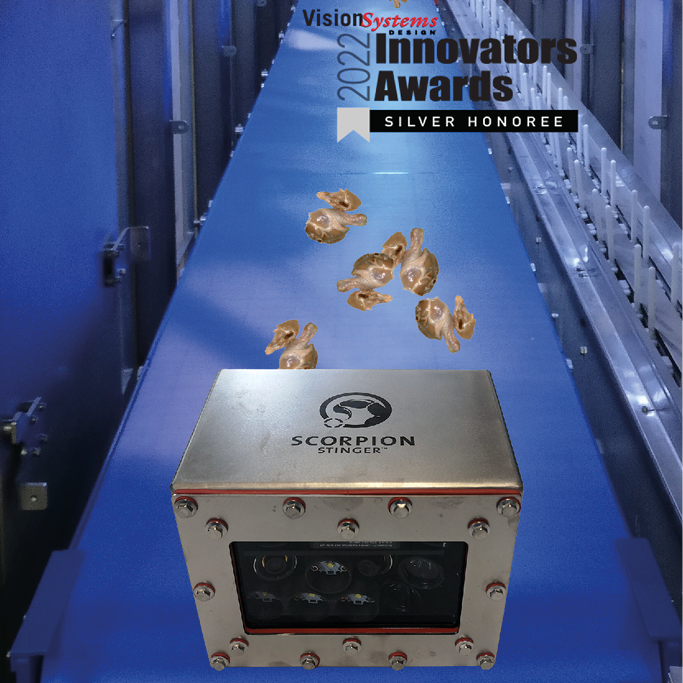

Food and Beverage Inspection

In these industries challenging production environment, we provide manufacturers with reliable inspection, verification and traceability solutions regardless of product size, shape and speed of line.

Scorpion 3D Stinger datasheets
Gingerbread icing
Fish vaccination

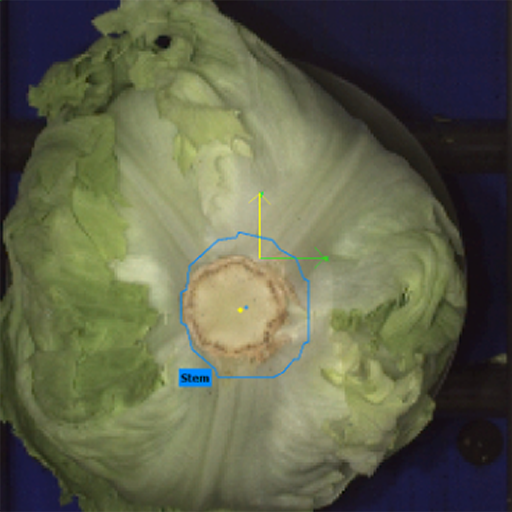

We have provided a range of machine vision solutions for a variety of applications, from product sortation by colour and shape, to identifying defected line items, guidance for robotic pick and place, as well as accurate assembly verification.

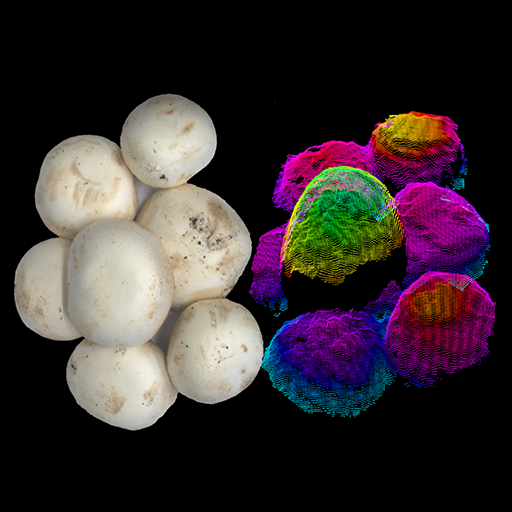

Fresh or live products present special challenges for machine vision and automated inspection. Scorpion Vision Software and Scorpion 3D Stinger is probably the market leading technology in this field with a portfolio that includes many innovations, such as automated fish vaccination to accurately identify the fish before safely locating the injection point.

Scorpion 3D Stinger for Aluminium

Tordivel AS cooperates with machine builders with experience with the aluminium industry. Tordivel pioneered the usage of inline 3D stub alignment in 2005. The systems are based on technology implemented at Hydro Aluminium’s plant at Sunndal, Norway and at Qatalum, Qatar. This document describes the third generation systems based on the Scorpion 3D Stinger technology that located the anode robustly making the systems even more robust and accurate.

Scorpion 3D Stinger datasheet - pdf

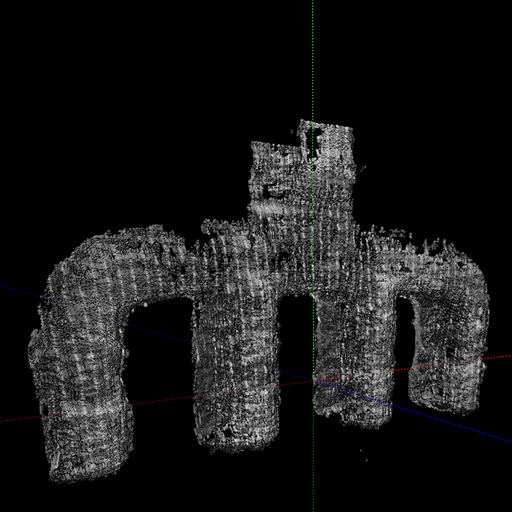

Stub measurement Scorpion 3D Stinger for Stub Measurement
Butt measurement Scorpion 3D Stinger for Butt Measurement

For all vision tasks, the software of choice is our own Scorpion Vision Software. Scorpion is an independent, configurable and open software tool for industrial vision. It is ideal for increased automation and improved quality in production output

This document defines a presentation of the Scorpion 3D Stinger Camera used in the Aluminium Industry for Scorpion 3D Stub Alignment and 3D Butt Inspection offered by Tordivel AS

Upon Request will Tordivel be able to design and deliver a custom 3D machine vision solutions that can be used where in-line 3D measurement or inspection is required.
