3D Machine Vision for Automation
Our machine vision systems are based on our Scorpion Vision Software®. The application, running on Microsoft Windows, acquires image data and communicate with external systems in real time. Scorpion Vision Software® is a very powerful machine vision application framework that is used in some of the worlds most complex and robust machine vision systems.
The platform on which our machine vision system are built is collectively known as Scorpion Stinger™. This consists of a suite of matched hardware and software products including industrial PCs, Scorpion 2D and 3D Stinger cameras, LED light, intelligent control boards and Scorpion Vision Software®.
We use this suite of products to create multi-camera, high performance inspection, measurement and sorting systems.
Scorpion Vision Software®

Scorpion Vision Software® is a powerful, flexible and extremely expeditious system software tool for industrial vision. The most advanced 2D and 3D solutions are made without any kind of programming.

Scorpion Vision Software® contains a world class calibration tool that enables very high accuracy, non-contact measurement systems that can measure sub-pixel and down to micron level.

Scorpion Vision Software® datasheets
Scorpion Vision Software® press releases
Scorpion Vision Software® video
Download Scorpion Vision Software®

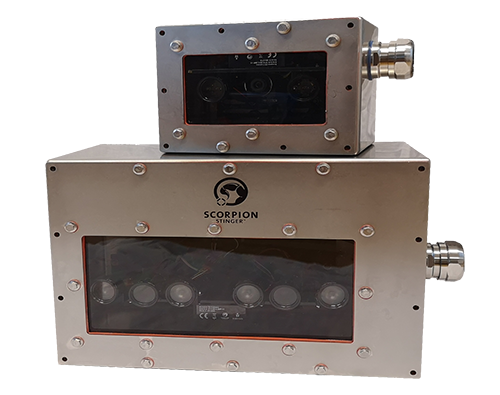

Scorpion 2D and 3D Stinger™ Camera

Scorpion 3D Stinger™ is a family of machine vision components and software products. They provide simple, state of the art and cost-effective building blocks for OEM and system integrators.

Scorpion 3D Stinger datasheets
Tordivel Blog
YouTube - Tordivel

Scorpion 3D Stinger™ for Robot Vision is designed to solve manufacturers’ classic challenge: Picking parts from a conveyor belt, a pallet or a crate. Scorpion 3D Stinger™ captures images, identifies and locates the product and sends the id and 3D location to a picking robot.

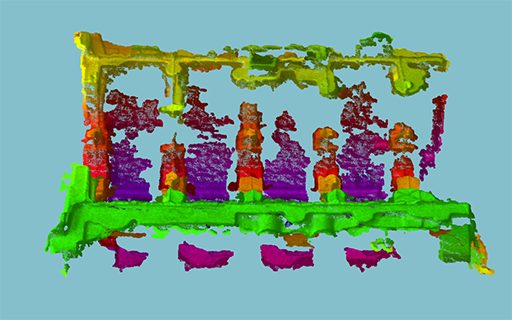

Scorpion 3D Stinger™ is a world class 3D machine vision technology.

Scorpion 3D Venom Camera

The global shutter Scorpion 3D Venom Camera is designed to be used in cutting-edge 3D Stereo Vision systems. It excels in short to medium size baselines using a single colour or monochrome camera with resolution from VGA to 12 MP.

Scorpion 3D Venom camera finds chocolats
Scorpion 3D Venom camera
YouTube - Tordivel

Two virtual 3D cameras are created by a clever mirror design that focuses on a user specified working distance. The compact industrial camera can create 3D images in a very limited space with working distances from 75 mm.
Main target applications are ID tracking, object tracking, height measurement, object counting and more.

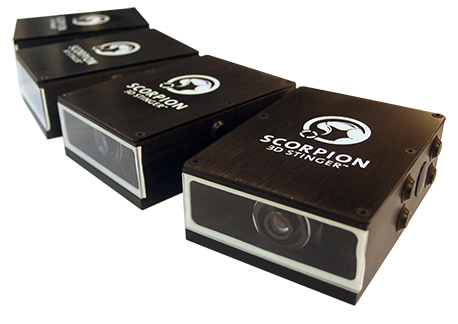

Scorpion Box Camera

The Scorpion Box Camera is designed to be used industrial applications. The Box camera is the ideal choice when you need to look at a specific detail in an advanced inspection or assemply verification task. The camera is used for crack detection, ocr, id-tracking, colour verification and 2D scanning.

Scorpion Box Camera datasheet - pdf
New industrial Scorpion Box Camera
YouTube - Tordivel

It is connected to a PC with a GigE connection, POE (Power over Ethernet) or an USB3 cable. Every camera is factory calibrated to a task with specific resolution at the selected working distance.
