Color Identification System





The Scorpion Color Identification system is a camera based system for color identification.

Download Color Identification System - 0.9 Mbyte pdf



The system picks the best color match from a set of reference images and calculates the color coverage of the inspected item.

System Description

The Scorpion Color Identification System consists of the following parts:

  • Junction Box, IP-65 grade, with camera

  • Firewire Interface Board

  • Scorpion Vision Software CD and license key

  • RealVNC remote pc operation

  • Scorpion Color Identification Profile

The system is connected to a Personal Computer with a firewire cable. The object must be evenly illuminated. The light source is not part of the package.

The system communicates with external systems using RS232, OPC and TCP/IP by sending start and stop, status and measurement data.

Scorpion Vision Software CD

Scorpion Vision Software is distributed on a CD with the following contents: Scorpion Vision Software, System Requirements, Scorpion Setup Program, Camera drivers, Documentation and Support programs.

Scorpion Color Identification Profile

The profile consists of the following elements:

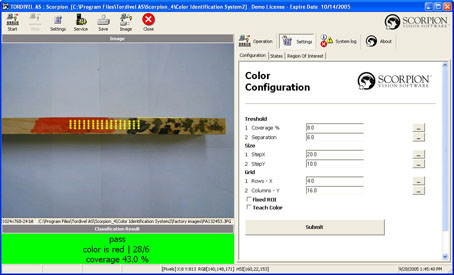

Color Configuration screen with:

  • Size of color sensors Matrix

  • ROI definition

LineFinder

  • Locating reference edge

  • Handles translation and rotation of item

Color Matching

  • SurfaceAnalyzer Tool

The Color Identification profile is contained in a zip file for easy update or remote verification through e-mail and internet.

Image processing concept

  • The system measures the color in an N x M matrix

  • The matrix can be fixed or referring to an edge of the item

  • Based on the number of accepted colors a coverage and area are calculated

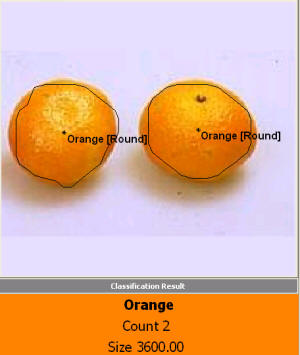

  • The system can count objects and classify them by shape and color

Teaching Colors

  • The system is trained after installation using reference images (colors)

  • It is possible to define a multitude of colors classes

  • Each color may have an infinite number of reference images

  • Multiple references are used to describe color variation within one color

  • The variation can be due to physical variations or real color changes

User Interface

The following information is available in the user interface:

  • Camera image

  • Inspection result with indicator panels

  • Description - Web page that contains a short description of the identification task

  • History - displays the latest inspection results

  • Curves - give a graphical view of measured values

  • Results - show measured values of the latest inspection

  • Statistics - give a periodical view of the inspection results

  • Color Configuration parameters and ROI navigation buttons
