Modern production lines rarely stay still. Product heights change from one batch to the next, robots move cameras through variable working distances, and inspection stations are increasingly asked to handle several product variants without a hardware reconfiguration. Against that backdrop, the industrial camera itself has had to evolve. It is no longer enough for a machine vision sensor to capture a sharp image under ideal, fixed conditions; it needs to hold that clarity across changing distances, temperatures and production tempos. HIKROBOT's CT Series area scan cameras have been built with that shift in mind, and their most distinctive answer to it is a camera-integrated liquid lens.
A platform built in three tiers
Rather than offering a single fixed specification, HIKROBOT structures the CT range across three configurations (BASE, PRO and MAX) each aimed at a different point on the reliability and integration curve. BASE covers standard machine vision work in protected, fixed installations, using a conventional C-mount lens and IP40 housing. PRO introduces IP67-capable sealing and a precision thermal architecture, making it suitable for harsher environments where the working distance itself remains constant. MAX goes further still, adding the control interfaces needed to drive a liquid lens and integrated lighting directly from the camera, alongside the same rugged sealing and thermal management found in PRO.
What this means in practice is that a system designer can select the level of environmental and optical sophistication the application actually requires, rather than over-specifying, or under-specifying, a single camera model across an entire production line. It is a scalable way of thinking about camera selection: image quality and durability that grow with the demands of the installation, not a fixed set of features applied uniformly.
Engineered for consistency, not just clarity
The PRO and MAX models are built around two problems that are easy to overlook until they cause a production issue: heat and colour drift. HIKROBOT's precision thermal architecture uses a PID-controlled algorithm to bring the camera to thermal equilibrium quickly and hold it there, reducing the drift-induced measurement errors that can creep in during long, continuous operation. Alongside this, an enhanced ISP algorithm applies multi-spectral fusion to keep colour reproduction consistent with human visual perception, which matters directly for any inspection task where colour, rather than just geometry, defines a pass or fail.
Connectivity has been treated with the same practical mindset. The CT Series supports both GigE Vision and USB3.0 interfaces, with GigE transmission possible over distances up to 100 metres without a relay, a detail that matters more on a real factory floor than it might on a datasheet, since it reduces the need for additional networking hardware between camera and controller. PoE support and compatibility with GenICam and third-party vision software further simplify integration into existing systems, rather than demanding a proprietary ecosystem.

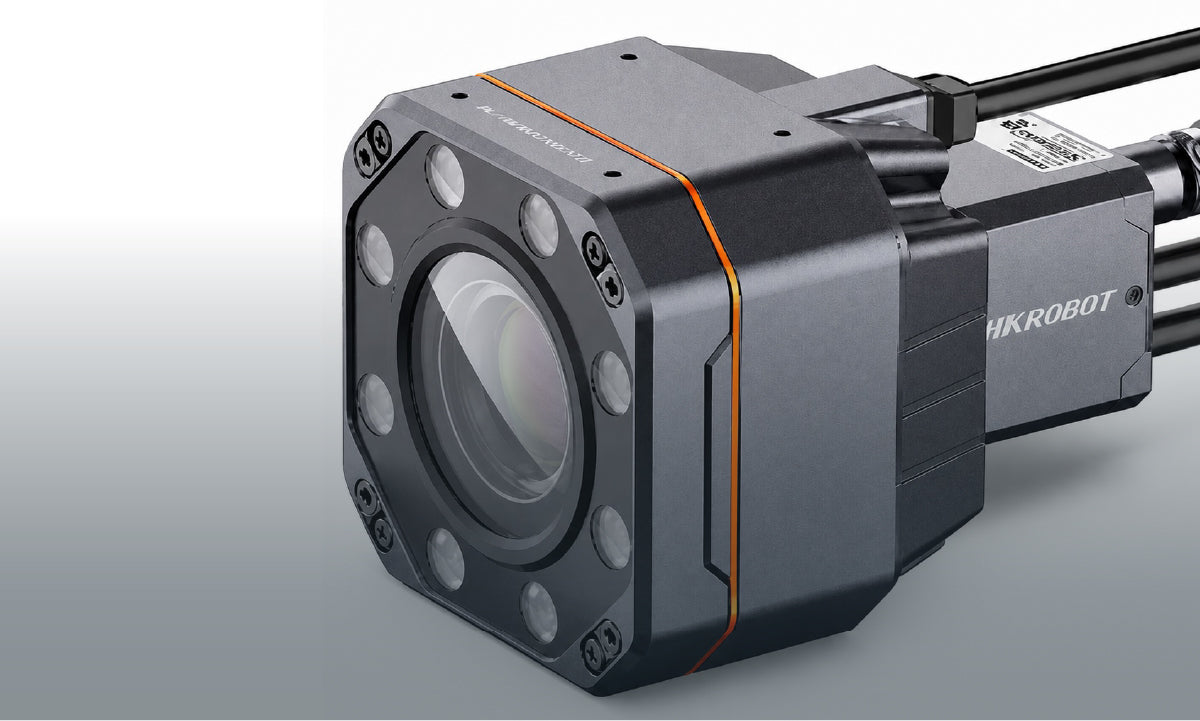

The liquid lens: focus without moving parts
The feature that sets the MAX configuration apart is its ability to drive a liquid lens. It is worth being precise about what this technology actually does, because it is easy to misread it as an optical zoom. It is not. The field of view is still set by the lens's nominal focal length (16, 25 or 35 mm in HIKROBOT's published CT range), but the plane of focus can be shifted electronically, without any lens group physically moving back and forth.
A conventional lens focuses in the way a person might move a magnifying glass towards and away from a page. A liquid lens behaves more like the human eye: it alters the curvature of an internal optical element in response to an electrical signal, bringing a different distance into focus without translating any glass. The result is a refocusing action that can happen in milliseconds, with no motor repeatedly moving a heavy lens assembly, which in turn reduces mechanical wear, vibration and the inertia that limits how quickly a conventional autofocus lens can respond.
The operational consequence is significant. Focus positions can be linked to a production recipe, a PLC command or a robot's pose, allowing a single camera to serve products of varying height, or to follow a robot as its distance to the target changes. In the MAX configuration, this focus control sits alongside integrated lighting control, meaning a system that would otherwise require several separate subsystems (lens driver, light controller, camera) can be managed from one integrated unit, within a housing that retains IP67-capable protection when correctly assembled.
Where a fixed lens still makes sense
None of this makes the liquid lens the correct choice by default. Where a product and camera sit at one unchanging working distance, a conventional fixed-focus lens remains the simpler and often more accurate option, particularly for high-precision gauging, telecentric optics or applications where cost and configuration simplicity outweigh the benefit of automatic refocusing. Liquid-lens systems introduce additional calibration considerations, and their focus behaviour can be sensitive to temperature and orientation, depending on the lens design. The distinction to hold onto is that a fixed focal length is not the same as a fixed focus; the CT's liquid-lens variants keep a defined focal length while adjusting optical power electronically, which is a meaningfully different capability from either a standard lens or a true zoom.
A more adaptable approach to industrial imaging
Selected correctly, the CT Series illustrates a broader trend in machine vision: reliability is increasingly less about a single fixed specification and more about a camera's capacity to adapt (to distance, to environment, to changing production requirements) without adding complexity elsewhere in the system. Where product geometry is genuinely static, a conventional lens remains a sound and economical choice. Where it is not, HIKROBOT's MAX platform offers a way to keep pace with that variability from within the camera itself, rather than around it.
